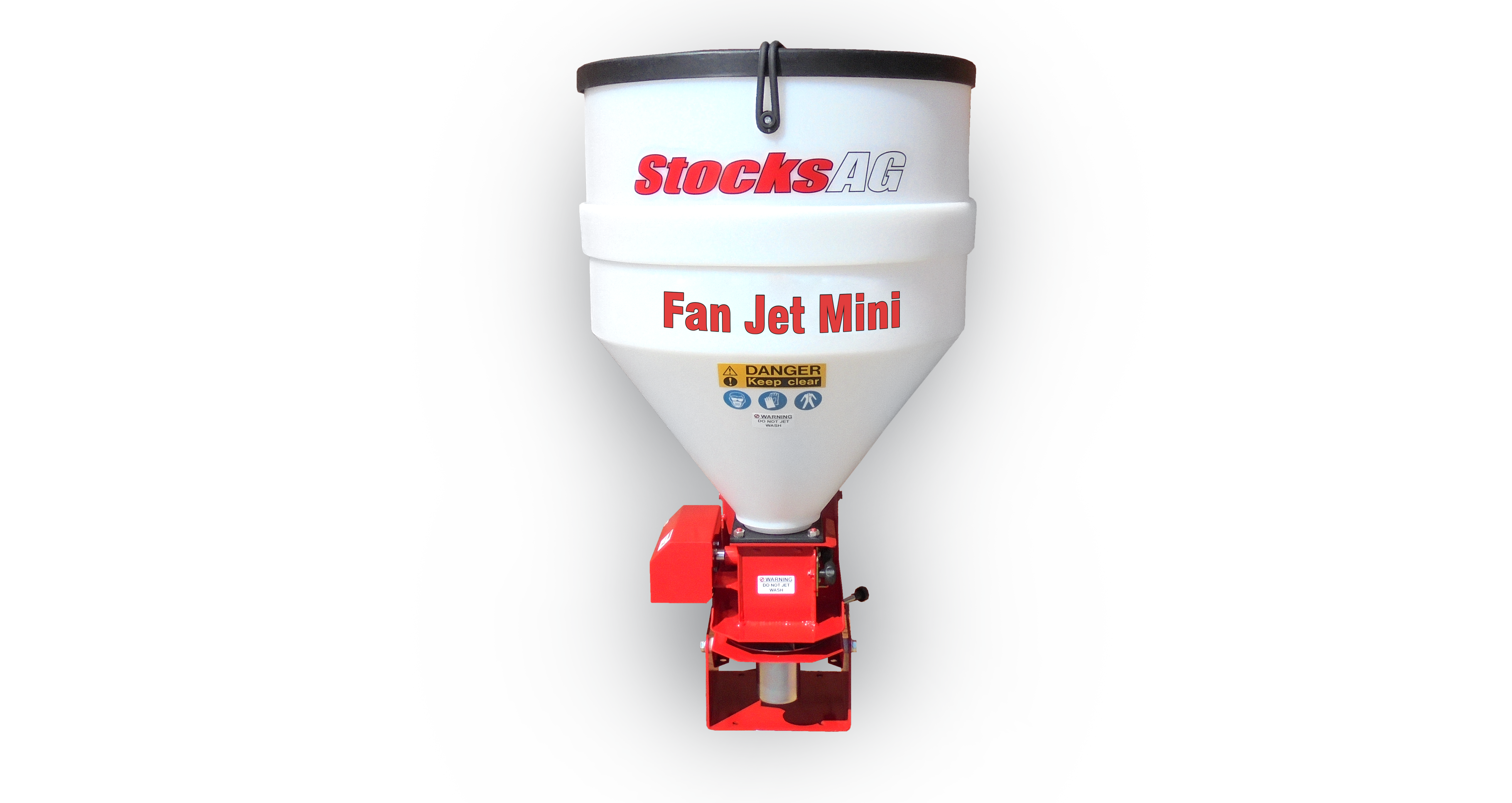

The Fan Jet Mini is designed for ‘restricted width’ spreading (slug pellets, other small seeds).
Sharing most of the features of the Fan Jet Plus, the Mini has a smaller diameter spinning disc which limits the spread width to 12m.
There is no spread bias adjustment on the Fan Jet Mini.
The Fan Jet Mini is designed for ‘restricted width’ spreading (slug pellets, other small seeds). Sharing most of the features of the Fan Jet Plus, the Mini has a smaller diameter spinning disc which limits the spread width to 12m.
There is no spread bias adjustment on the Fan Jet Mini.
Both 65 litre and 130 litre hoppers have a tipping bracket that will attach horizontally or vertically for base or back mounting. The bracket has two hole positions to adjust the pitch angle.
Extension cables – can be supplied as required.
KEY FEATURES
- Spread width up to 12m
- Adjustable speed related application with JACKAL and i-CON
- Easy emptying of hopper
- Adjustable deflectors to limit spread width
- Disc speed adjustment to limit spread

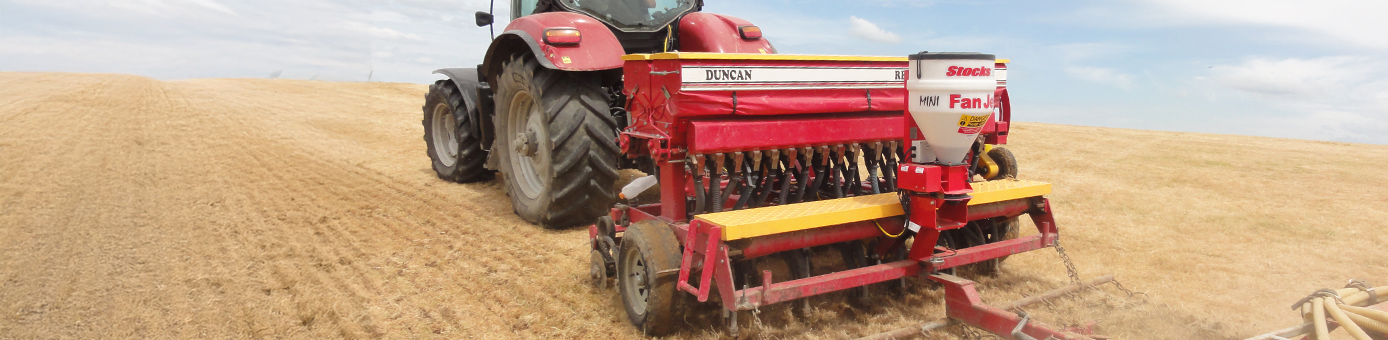

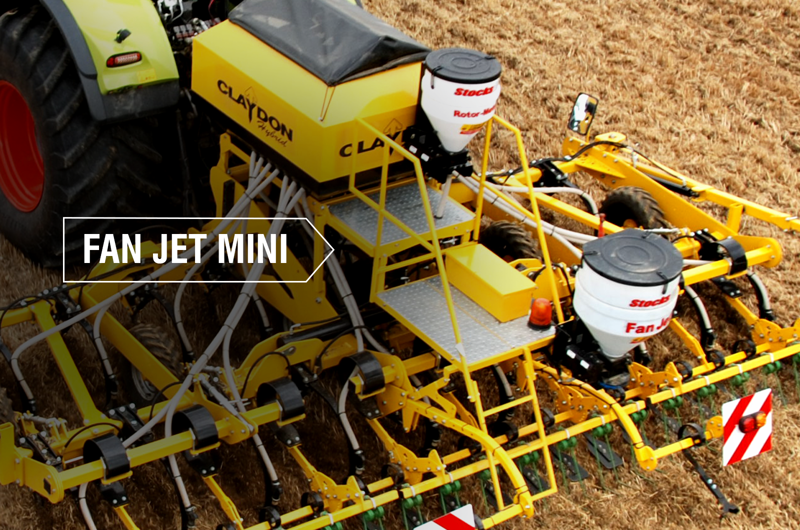

- Mostly used on rolls, drills or cultivators
- 3500 rpm disc motor
- Stainless steel twin-vane spinning disc
- Electric motor adjustment of application rate
- 12v 20A power requirement
- In cab electric controls. Instant feed shut off
- 5m fused power and 6m connector cable included
- Robust construction with high-quality motors
- 65 or 130 litre plastic hopper
- Optional feed rollers available
FAN JET MINI CONTROLS
TWO CONTROL OPTIONS
VARI-SPEED CONTROL
Disc speed and feed roller speed can be changed on the move from the tractor seat using a simple dial control.
A simple and effective manually operated electric control is used to instantly start and stop the feed motor e.g. at headlands.
- Left hand switch - main power and disc on/off
- Left hand dial - disc motor speed control
- Right hand switch - feed motor on/off
- Right hand dial - disc motor speed control
JACKAL CONTROL
The JACKAL is a simple compact controller which enables monitoring and adjustment of all key functions.
Screen shows application rate, forward speed, hopper level alarm and fan voltage. As standard the forward speed input is taken from the tractor 7 pin implement socket, a GPS speed sensor is optional.
- Large LCD screen and robust water resistant housing
- Quick easy set-up
- Simple accurate calibration for precise rate control
- Forward speed adjust rate control as standard with on the move adjustment
- High and low alarms for fan and metering roller
- Multiple trip counters and live date scrolling
i-CON CONTROL
Rates are automatically controlled in proportion to
forward speed for ultimate accuracy, and the machine can apply variable rates according to mapping data using a GPS based touch screen*.
*subject to unlock fee
- 4.3” colour touch screen with 4 basic menu keys
- Seed application rate kg/ha
- Rate nudge - on the move adjustment in pre-set increments
- Min/max forward speed (km/h) indicator with alarms
- Metering unit status (on/off) and alarm
- Disc status (on/off) and alarm
- Hopper contents (kg) and low level alarm
- Part, full job & grand totals for area (ha), product dispensed (kg) and hours worked
SPREAD WIDTH
Quoted spread widths are only a guide. As the product is spread, the density diminishes towards the extremity and so an overlap is recommended.
The maximum spread width is determined by:
- Product type & integrity
- Product density
- Application rate
- Forward speed
- Wind speed and direction
- Disc height from crop canopy
METERING MECHANISM
The fluted feed rollers supplied are suitable for most products from ultra-low rates through to high rates of application. The rollers agitate the product to ensure a consistent flow.
The feed rollers meter product through two feed apertures, onto the spinning disc which provides a more even spread pattern left and right than just a single feed aperture. Alternative feed rollers are available for specialist pellets and seeds.
CALIBRATION HOPPER
An optional calibration aid, a steel chute is easily attached and collects and deflects the product being spread into a user provided bag for weighing during calibration checks. Supplied as standard with all i-CON models.
WATERPROOF COVERS
Fan Jet’s can be supplied with optional waterproof covers for use when out of work.
BROCHURE
Check out our latest full brochure by clicking the image below, download is available
BUILT IN THE UK
Wisbech is still the home of Stocks Ag. All applicators are fabricated, assembled and painted in the Cambridgeshire factory. Precision assembly and quality control are paramount to the production process.
The R & D team work with both the factory and farmers to deliver a seeding solution that is fit for current farming practices.
