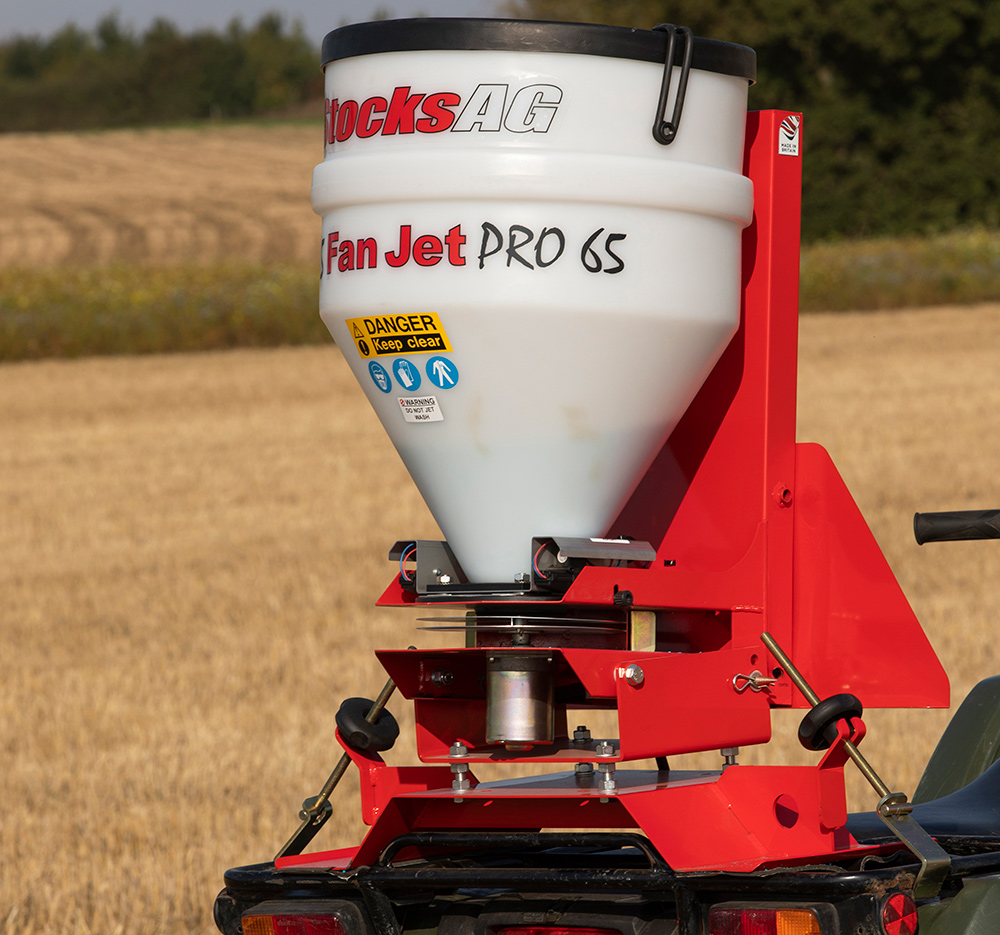

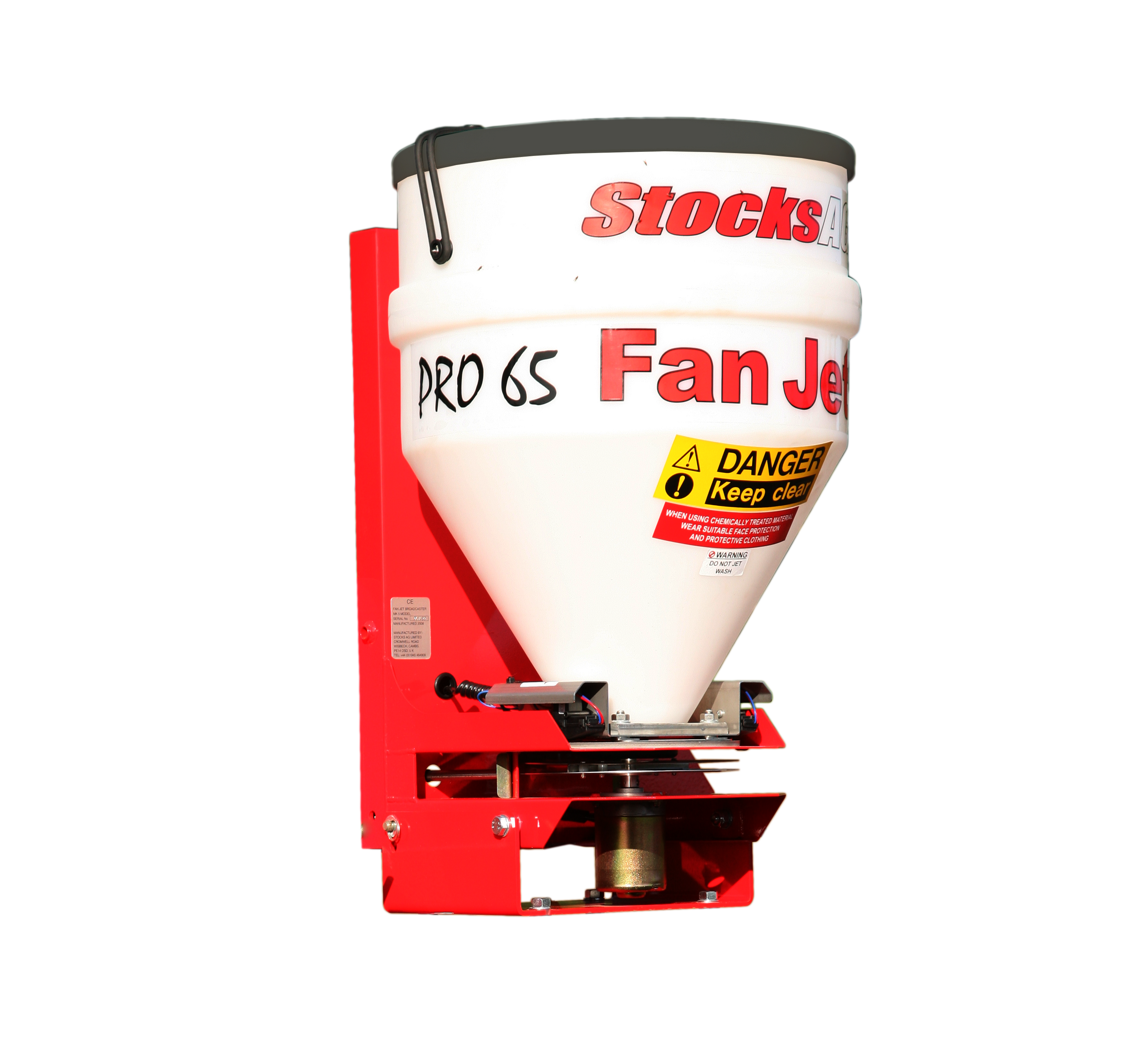

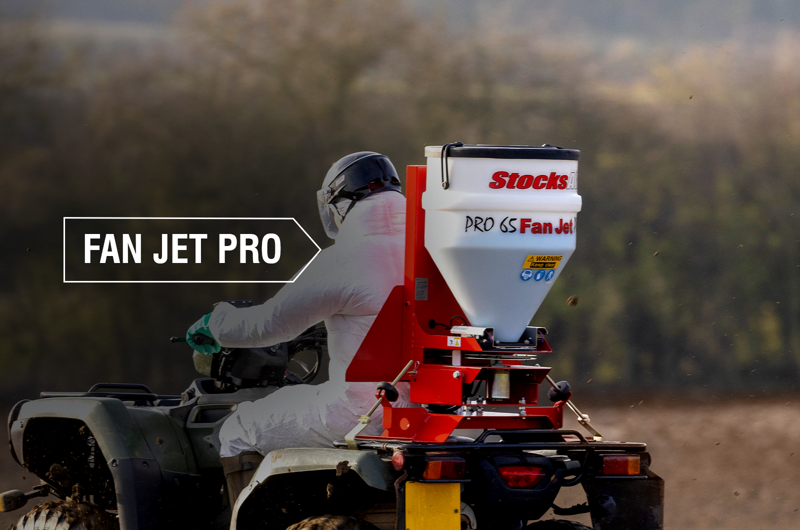

Fan Jet Pro

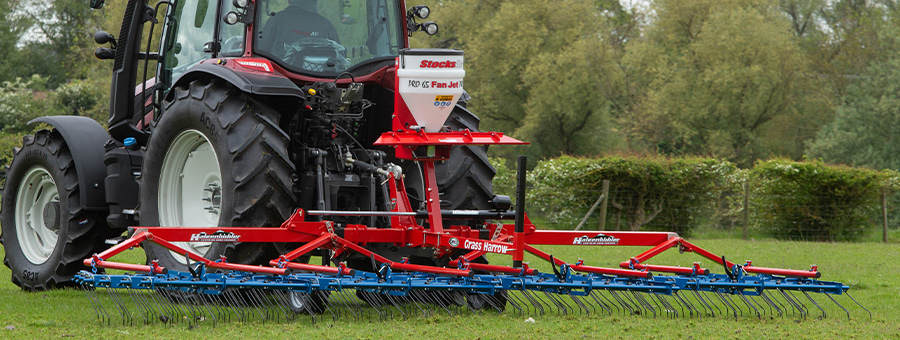

The original, and still the most popular model in the Fan Jet range. The Pro is the classic slug pelleter for use with ATVs, UTVs, tractors and self-propelled sprayers, in fact, any vehicle with a 12 volt power source.

However, the Fan Jet Pro is also equally suited to broadcasting small seeds and other granular products. Spreading up to 24m (product dependent), it is simple to set up and can use an adjustable disc speed to change spread width. A variety of options enhance the performance of this versatile machine.

QUICK ENQUIRY

GRAVITY FEED

FAN JET PRO (Fixed Speed Control)
FAN JET PRO (Vario-Speed Control)

KEY FEATURES

Spread width up to 24m
Fixed speed application rate
Easy, quick, stepless adjustment of bias left or right
Easy emptying of hopper
Adjustable deflectors to limit spread width
Optional disc speed adjustment to limit spread
Mostly used on sprayers or quad bikes
3500 rpm disc motor
Stainless steel shut off mechanism
Stainless steel twin-vane spinning disc
Manual stepless adjustment of application rate
12v 20A Power requirement
In cab electric controls. Instant feed shut off
5m fused power and 6m connector cable included
Robust construction with high-quality motors
Standard Agitator included. Grass optional
65 or 130 litre plastic hopper
Optional grass seed deflector

FAN JET PRO CONTROLS

TWO CONTROL OPTIONS

FIXED SPEED CONTROL

In cab fixed disc speed control console unit with instant, positive feed shut-off, start-up and disc control is standard on the Fan Jet Pro.

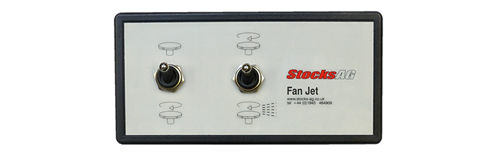

Fixed disc control panel

Left hand toggle switch - main power and disc on/off
Middle toggle switch - feed shutter on/off

VARIO-SPEED CONTROL

Features additional disc speed control to reduce the spreading width, for example to match the implement width, or use to broadcast small seeds with minimum damage (rape, turnips, etc). Adjust the mechanical width deflectors and ‘dial down’ the disc speed as required.

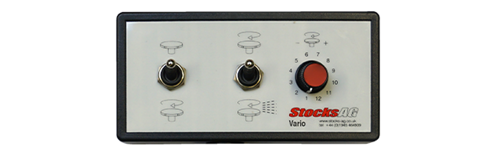

Vario speed control panel

Left hand switch - main power and disc on/off
Middle switch - feed shutter on/off
Right dial - variable disc speed

Vario-speed control is not linked to forward speed, so once calibrated the operator drives at a consistent forward speed to maintain the rate and can manually increase or decrease the disc speed on the move using the dial to increase or decrease spreading width.

SPREAD WIDTH

Quoted spread widths are only a guide. As the product is spread, the density diminishes towards the extremity, and so an overlap is recommended.

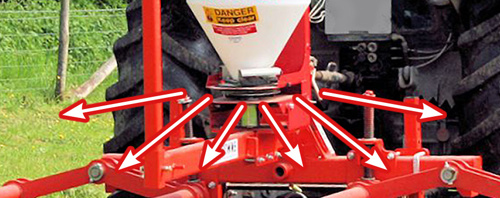

Fan Jet Pro spread width

The maximum spread width is determined by:

Product type & integrity
Product density
Application rate
Forward speed
Wind speed and direction
Disc height from crop canopy

SEED DEFLECTOR

An easily attached, optional adjustable deflector reduces and controls the spread width for products such as grass seed. Vario-speed control recommended.

Seed deflector

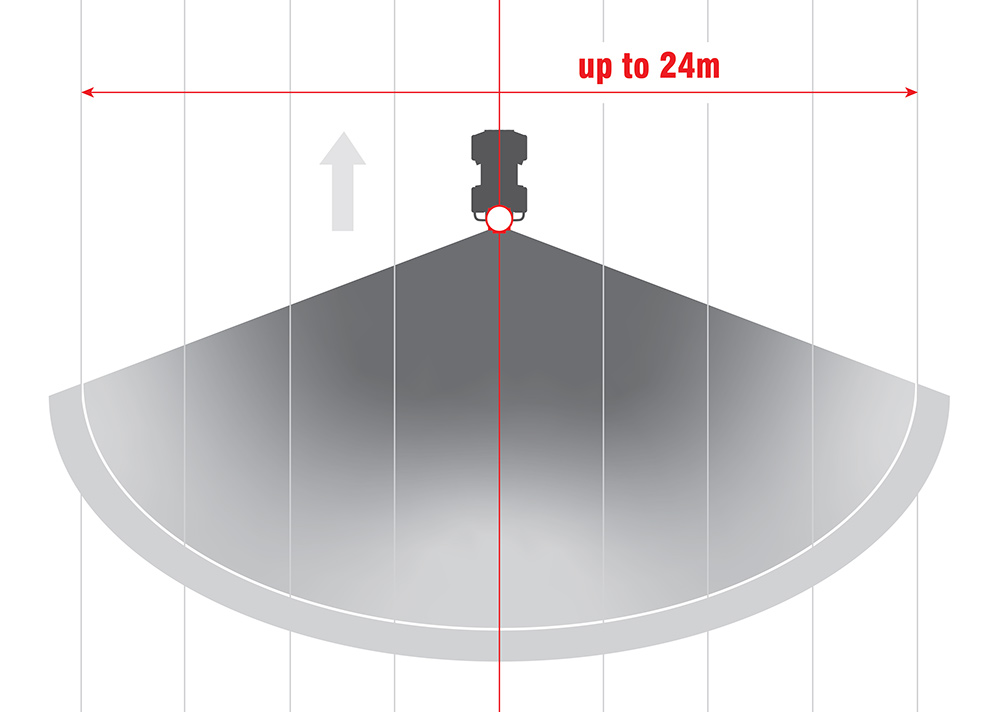

FAN JET PRO SPREAD WIDTH ON ATV

CALIBRATION CHUTE

An optional calibration aid, a steel chute is easily attached and collects and deflects the product being spread into a user provided bag for weighing during calibration checks.

WATERPROOF COVERS

Fan Jet’s can be supplied with optional waterproof covers for use when out of work.

BROCHURE

Check out our latest full brochure by clicking the image below, download is available

BUILT IN THE UK

Wisbech is still the home of Stocks Ag. All applicators are fabricated, assembled and painted in the Cambridgeshire factory. Precision assembly and quality control are paramount to the production process.

The R & D team work with both the factory and farmers to deliver a seeding solution that is fit for current farming practices.
