CONTROL OPTIONS

Three systems are available JACKAL, i-CON or ISOBUS. The i-CON and JACKAL are supplied with a control console, connector cable and fused battery cable. ISOBUS units are supplied with 10m of fused battery cable. Extension cables are available as a cost option.

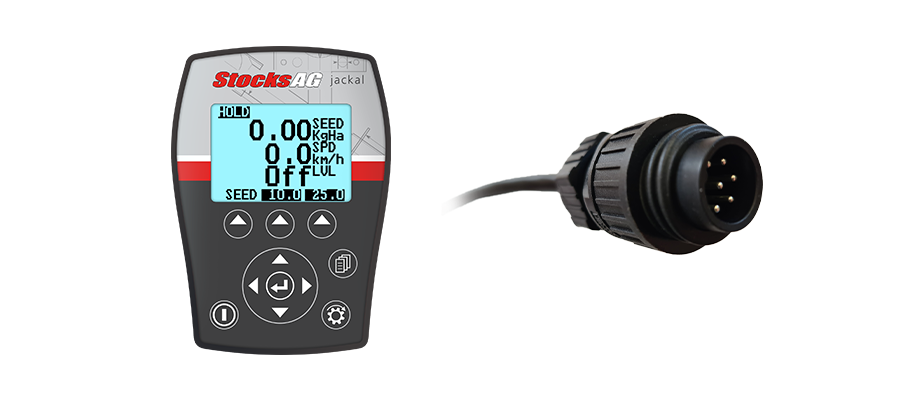

JACKAL CONTROL

The JACKAL is a simple compact controller which enables monitoring and adjustment of all key functions. Screen shows application rate, forward speed, hopper level alarm and fan voltage. As standard the forward speed input is taken from the tractor 7 pin implement socket.

The JACKAL can be fitted with a GPS speed input and in/ out of work cut-off switch if required.

• Simple accurate calibration for precise rate control.
• Forward speed adjusted rate control as standard speed input via tractors 7 pin implement socket.
• In cab application rate display, forward speed, area worked and hopper level sensor (if fitted).
• On the move rate adjustment, plus two “quick rate” functions keys for pre-set application rates (adjustable).
• High and Low alarm functions for metering roller.
• Large LCD screen, easily read characters contained in a robust housing.
• GPS forward speed sensor optional.

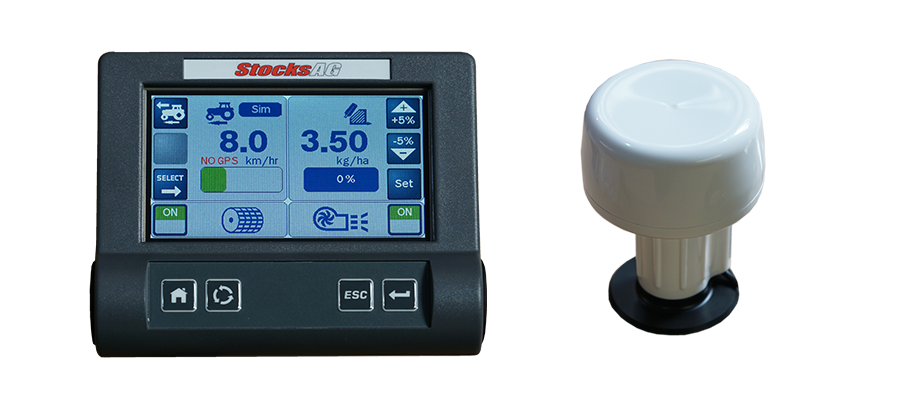

i-CON CONTROL

Rates are automatically controlled in proportion to forward speed for ultimate accuracy, and the machine can apply variable rates according to mapping data using a GPS based touch screen*.

*subject to unlock fee

GPS sensor, hopper level sensor and on/off finger switch supplied as standard.

• 4.3” colour touch screen with 4 basic menu keys
• Seed application rate kg/ha or seeds/m²
• Pre-start - ensures seed delivery begins as soon as the drill enters work
• Rate nudge – on the move adjustment in pre-set increments
• Min/max forward speed (km/h) indicator with alarms
• Metering unit status (on/off) and alarm

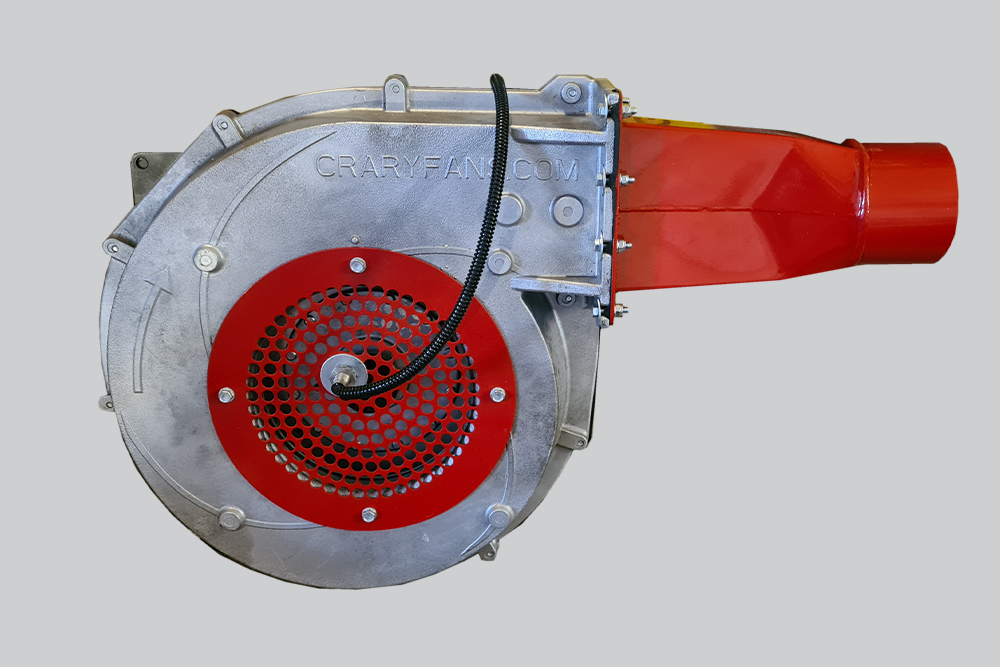

• Hydraulic fan speed and alarm
• Hopper contents (kg) and low level alarm
• Part, full job & grand totals for area (ha), product dispensed (kg) and hours worked
• ISOBUS compatibility kit available

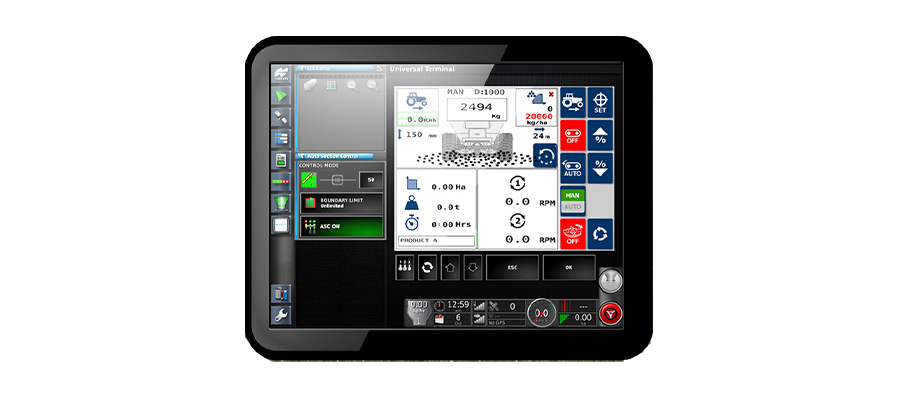

ISOBUS CONTROL

Bridge module link to tractor ISOBUS available.

* ISOBUS screen not supplied, for illustrative purposes only.

• Controls multiple applicators as if they were on machine
• The tractors own GPS is used for a speed input
• The Task Controller can be used to control the applicator/s ON/OFF function
• Easily swapped between tractors
• Can control up to 4 machines

METERING MECHANISM

Fluted feed rollers on a stainless steel shaft are driven by a 12 volt electric motor. All Maxi Jets are offered with a choice of feed blocks.

Feed blocks are easily removed from the machine body. A variety of feed roller segments can be supplied, allowing multiple configurations to suit a wide range of applications. They are easily changed as required.

Calibration

An external calibration button is fitted as standard to enable the operator to start the calibration at the side of the machine.

A simple ‘catch and weigh’ calibration test establishes application rate. A calibration tray is supplied.

SMALL SEED FEED BLOCK

Microsoft.CSharp.RuntimeBinder.RuntimeBinderException: 'Newtonsoft.Json.Linq.JValue' does not contain a definition for 'image'
   at CallSite.Target(Closure , CallSite , Object )
   at System.Dynamic.UpdateDelegates.UpdateAndExecute1[T0,TRet](CallSite site, T0 arg0)
   at CallSite.Target(Closure , CallSite , Object )
   at AspNetCore.Views_Partials_grid_editors_media.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\media.cshtml:line 62
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageCoreAsync(IRazorPage page, ViewContext context)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageAsync(IRazorPage page, ViewContext context, Boolean invokeViewStarts)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderAsync(ViewContext context)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.RenderPartialCoreAsync(String partialViewName, Object model, ViewDataDictionary viewData, TextWriter writer)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.PartialAsync(String partialViewName, Object model, ViewDataDictionary viewData)
   at AspNetCore.Views_Partials_grid_editors_base.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\base.cshtml:line 11

Individual feed rollers for each outlet ensure accuracy down to very low rates.

Typically used for OSR, clover, mustard, turnips and slug pellets.

LARGE SEED FEED BLOCK

Microsoft.CSharp.RuntimeBinder.RuntimeBinderException: 'Newtonsoft.Json.Linq.JValue' does not contain a definition for 'image'
   at CallSite.Target(Closure , CallSite , Object )
   at AspNetCore.Views_Partials_grid_editors_media.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\media.cshtml:line 62
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageCoreAsync(IRazorPage page, ViewContext context)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageAsync(IRazorPage page, ViewContext context, Boolean invokeViewStarts)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderAsync(ViewContext context)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.RenderPartialCoreAsync(String partialViewName, Object model, ViewDataDictionary viewData, TextWriter writer)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.PartialAsync(String partialViewName, Object model, ViewDataDictionary viewData)
   at AspNetCore.Views_Partials_grid_editors_base.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\base.cshtml:line 11

50mmØ large feed rollers are supplied to meter high rates of both large and small seeds.

Typically used for grass and cover crops at e.g. 40 kgs/ha at 6m wide at 12kph.

A 59mmØ high capacity feed block is also available for the Maxi Jet. Typically used for wide machines, high rates and high forward speed applications. e.g. 100kg/ha, 6m wide at 15kph.

GRANULAR FEED BLOCK

Microsoft.CSharp.RuntimeBinder.RuntimeBinderException: 'Newtonsoft.Json.Linq.JValue' does not contain a definition for 'image'
   at CallSite.Target(Closure , CallSite , Object )
   at AspNetCore.Views_Partials_grid_editors_media.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\media.cshtml:line 62
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageCoreAsync(IRazorPage page, ViewContext context)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageAsync(IRazorPage page, ViewContext context, Boolean invokeViewStarts)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderAsync(ViewContext context)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.RenderPartialCoreAsync(String partialViewName, Object model, ViewDataDictionary viewData, TextWriter writer)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.PartialAsync(String partialViewName, Object model, ViewDataDictionary viewData)
   at AspNetCore.Views_Partials_grid_editors_base.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\base.cshtml:line 11

Typically used for granular products e.g. Avadex.
