Micro & Maxi Meter

Both the Micro Meter and Maxi Meter are modular 1m applicators which come as standard with 6 metered outlets, both machines can be used to apply product by gravity up to a working width of 1.5m.

A second Maxi Meter “Add-on unit” can drive and be controlled by the first one. Similarly, up to two “Add-on units” can be run from one Micro Meter base unit. The Combi-Drive Micro Meter configuration allows a second unit to be added “back-to-back” to drive and control the first unit.

QUICK ENQUIRY

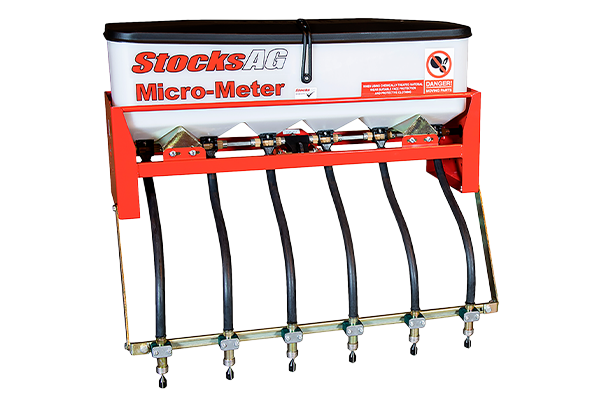

The Micro Meter is a modular machine, built up in one meter lengths as required, it uses a simple, reliable, low cost gravity feed metering system.

Micro Meters are typically used to accurately meter and distribute small seeds and micro granules and are available with Vari-Speed, Jackal or i-CON control systems. A “high rate” version is also available for metering grass mixtures and other larger volume product.

KEY FEATURES

1m modular sections, 60 litre hopper
Max 3 sections mounted in line (Jackal & i-CON)
6 gravity fed outlets per unit
Band seeding working width up to 1.5m per unit
Spreader cones available, total ground coverage of 1.5m per 1m section
Can be specified with small or high rate fluted feed rollers

MICRO & MAXI METER CONTROLS

TWO CONTROL OPTIONS

VARI-SPEED CONTROL

Vari-Speed provides effective, low-cost, manually operated
electric control. A dial control sets the feed motor speed and
thus the application rate and this motor can be instantly started or stopped at headlands.

Vari-Speed is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain the rate, or can manually increase or decrease application rates on the move using the dial.

Left hand switch - feed motor on/off
Centre switch - metering roller high/low speed
Right hand dial - Metering roller speed control

JACKAL CONTROL

The JACKAL is a simple compact controller which enables
monitoring and adjustment of all key functions.

The screen shows application rate, forward speed, hopper
level alarm and fan voltage. As standard the forward speed
input is taken from the tractor 7 pin implement socket.

The JACKAL can be fitted with a GPS speed input and in/ out of work cut-off switch if required. Uses the tractor 7 pin plug
for forward speed signal and on/off linkage function.

Large LCD screen and robust water resistant housing
Quick easy set-up
Simple accurate calibration for precise rate control
Forward speed related rate control as standard with on the move adjustment
High and low alarms for metering roller
Multiple trip counters and live data scrolling

i-CON CONTROL

Rates are automatically controlled in proportion to forward
speed for ultimate accuracy, and the machine can apply
variable rates according to mapping data using a GPS
based touch screen*.
*subject to unlock fee

GPS sensor, hopper level sensor and on/ off finger switch supplied as standard.

4.3” colour touch screen with 4 basic menu keys
Seed application rate kg/ha or seeds/m²
Min/max forward speed (km/h) indicator with alarms
Metering unit status (on/off) and alarm
Hopper contents (kg) and low level alarm
Part, full job and grand totals for area (ha), product dispensed (kg) and hours worked
ISOBUS compatibility kit available

ADDITIONAL HOPPERS

Up to two additional “Add-on units” can be connected to the main Micro Meter when using the Jackal or i-CON controller. (One additional unit can be added when using Vari-Speed). The Add-on units are connected using drive shafts (max 60cm) and each hopper has its own adjuster.

6 OUTLETS

Each hopper has six outlets. However blanking plates can be used to reduce the number of outlets.

METERING

A precision moulded plastic fluted feed roller is driven by a stainless-steel feed shaft.

The feed rollers slide through their housings, to provide stepless rate adjustment, by opening or closing the feed aperture using a simple rotary wheel to increase or decrease the feed shaft speed. Either small or large fluted feed rollers can be supplied with the Micro Meter.

SPREADER KIT

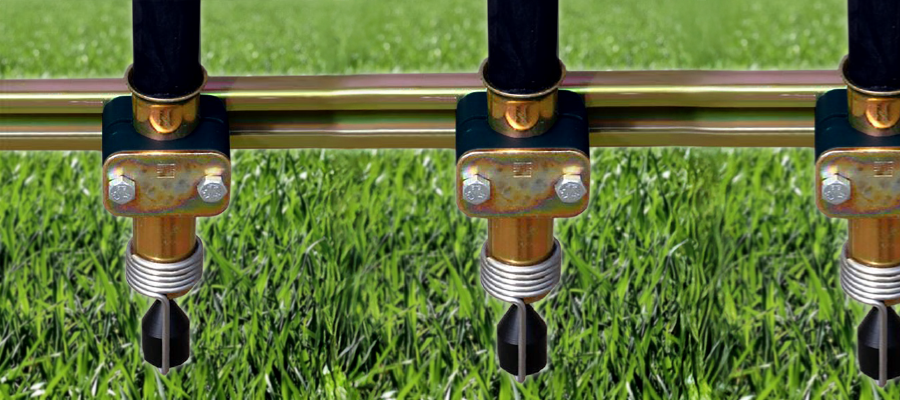

Each 1m hopper is supplied with a spreader kit consisting of six inverted nylon cones attached to steel channel section.

The steel channel section can be joined to the adjacent section if more than one Micro Meter is used. The outlet spreaders slide along the steel channel and are locked in place at the required spacings.

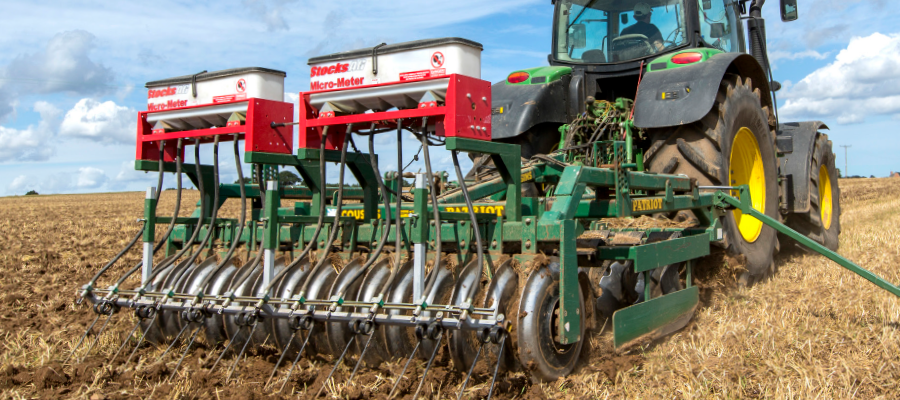

FITTING TO THE IMPLEMENT

The hoppers should be mounted high enough to ensure product can be gravity fed down the delivery hose.

The chassis bolts together to form a rigid structure. Spare holes have been drilled to facilitate fitting to the parent vehicle with a suitably supplied bracket.

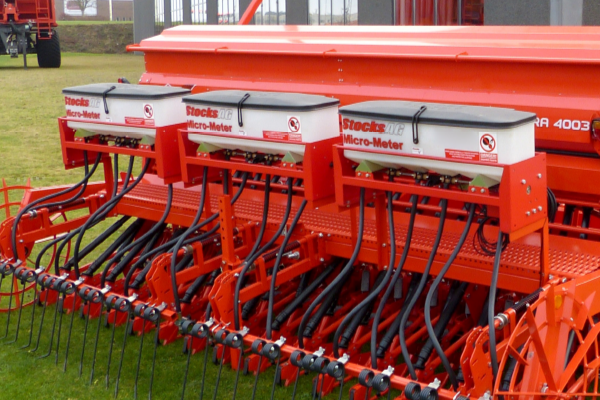

ARABLE CROP APPLICATIONS

GROUND CARE APPLICATIONS

ROOT CROP APPLICATIONS

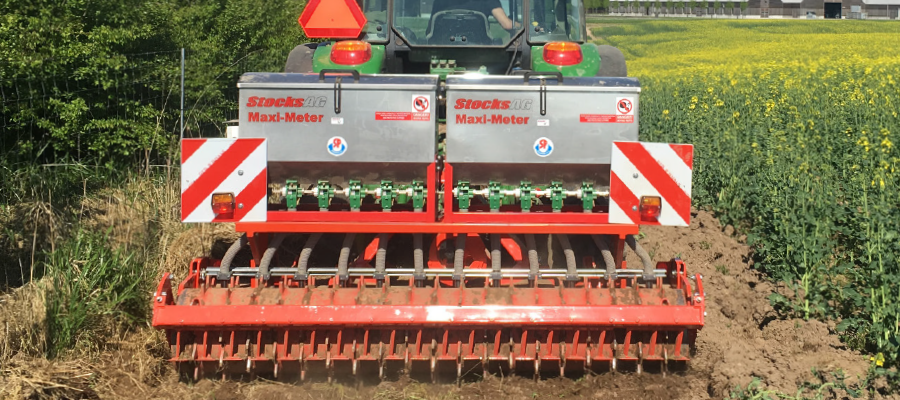

MAXI METER

The Maxi Meter is a larger capacity version of the Micro Meter, designed for large seeds and prilled fertilisers and is available with Vari-Speed, Jackal or i-CON control systems.

Aimed at higher application rates it has similar 1m modular sections but a 165 litre stainless steel hopper which is resistant to corrosive granules and fertiliser.

KEY FEATURES

1m modular sections
165 litre stainless hopper
Larger metering unit than Micro Meter
6 outlet per unit, total ground cover up to 1.5m per section (when fitted with optional spreader plates)
Max 2 units mounted in line (3m working width)

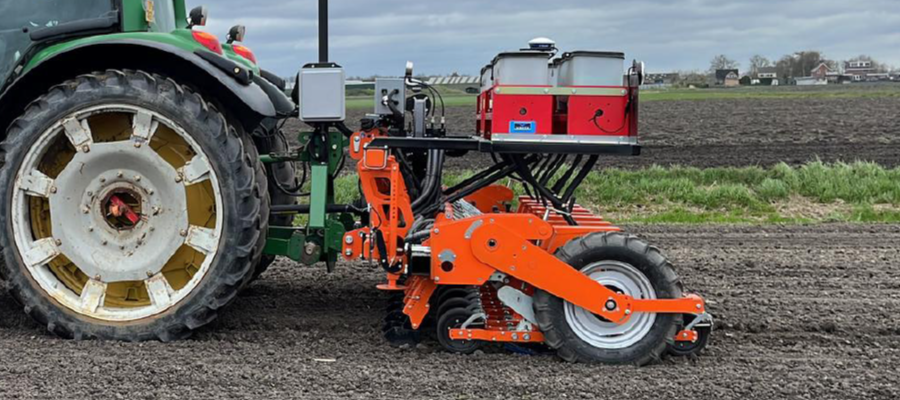

MICRO METER COMBI-DRIVE

The Combi-Drive uses a Micro Meter base unit with an add-on Micro Meter unit mounted back-to-back to apply two different products at the same time. The need for only one drive unit reduces cost of the second unit.

The Micro Meter units need to be mounted back-to-back so that product in both gravity fed pipes have a straight fall onto the same row of crop. Typically, this would work with OSR and slug pellets or OSR and micro fertiliser mouted to a small cultivator.

KEY FEATURES

2 x 60 litre hoppers per 1m section
Ability to apply 2 different products
Gravity fed up to 12 outlets per 1.5m
Spreader cones available
Optional, GPS speed variable rate control

MICRO & MAXI METER SPECIFICATIONS

	MICRO METER			MAXI METER
Control system	Vari-Speed	JACKAL	i-CON	Vari-Speed	JACKAL	i-CON
Feed rollers installed	Fine/Large	Fine/Large	Fine/Large	Large	Large	Large
Maximum number of outlets per meter	6/12*	6/12*	6/12*	6	6	6
Spreader/distributor cones	Option	Option	Option	Option	Option	Option
Maximum working width per unit	1.5m	1.5m	1.5m	1.5m	1.5m	1.5m
Switch and dial controller	YES	-	-	YES	-	-
LCD display with push buttons	-	YES	-	-	YES	-
Colour touch screen control box	-	-	YES	-	-	YES
Hopper capacity (Litres)	60	60	60	165	165	165
Forward speed sensor kit	-	Option	Option	-	Option	Option
Forward speed using tractor implement plug	-	YES	-	-	YES	-
Forward speed GPS	-	Option	YES	-	Option	YES
Precision farming/variable rate	-	-	Option	-	-	Option
In/out work sensor/switch	-	Option	YES	-	Option	YES
Hopper level sensor	-	Option	YES	-	Option	YES
Hopper cover	Option	Option	Option	Option	Option	Option
Weight	36kg	36kg	36kg	55kg	55kg	55kg
Dimensions (W x D x H)	1020 x 320 x 480mm	1020 x 320 x 480mm	1020 x 320 x 480mm	1220 x 380 x 760mm	1220 x 380 x 760mm	1220 x 380 x 760mm
Paint to match host machine	Option	Option	Option	Option	Option	Option

Supplied with:

Vari-Speed

5m fused battery power cable and 6m connector cable are supplied as standard.

Extension cables are a cost option.

Power requirement:

12 volts DC – 12 volts DC – 15 amps

i-CON

7m fused battery power cable and 6m connector cable are supplied as standard.

Extension cables are a cost option.

Power requirement:

12 volts DC – 15 amps.
